    1. All products
    2. Bio-furrow turner
    3. All products
    Bio-furrow turner

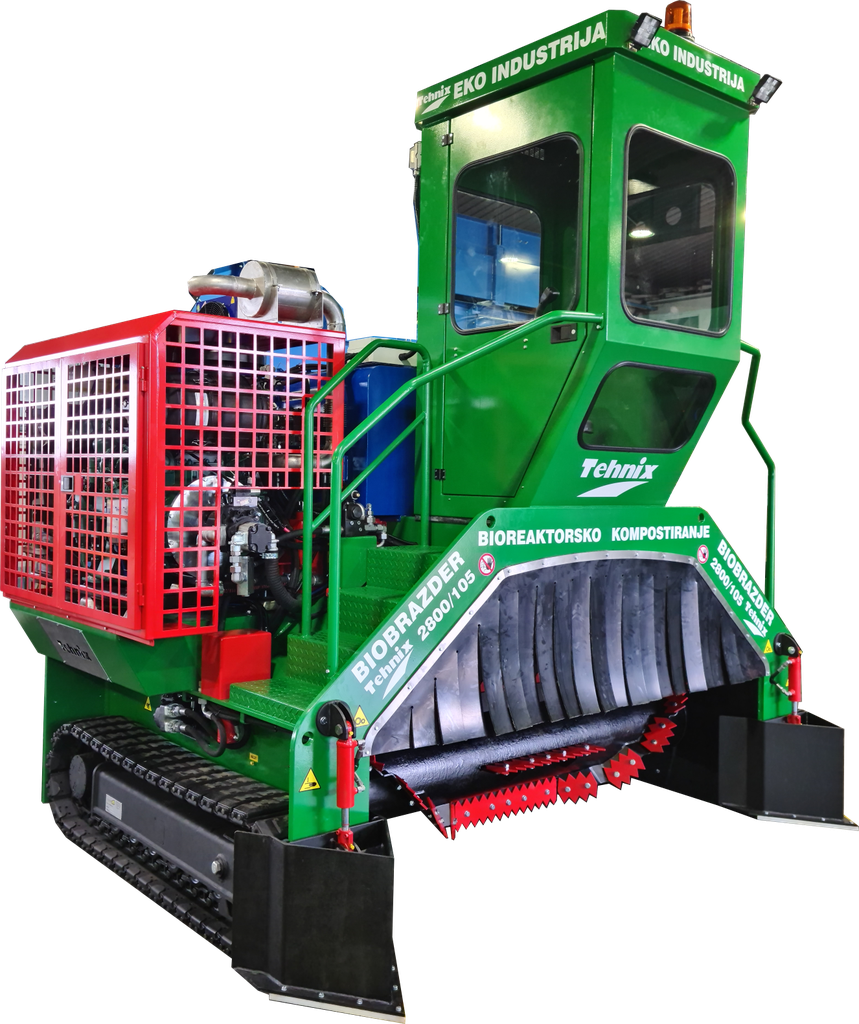

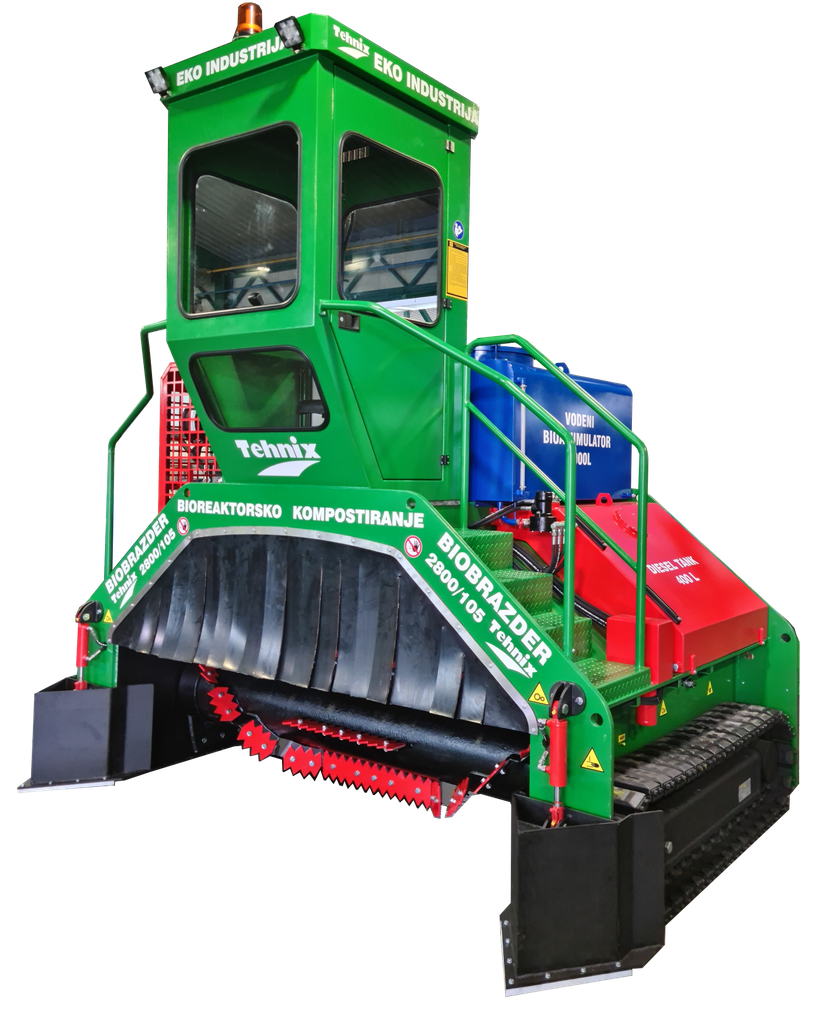

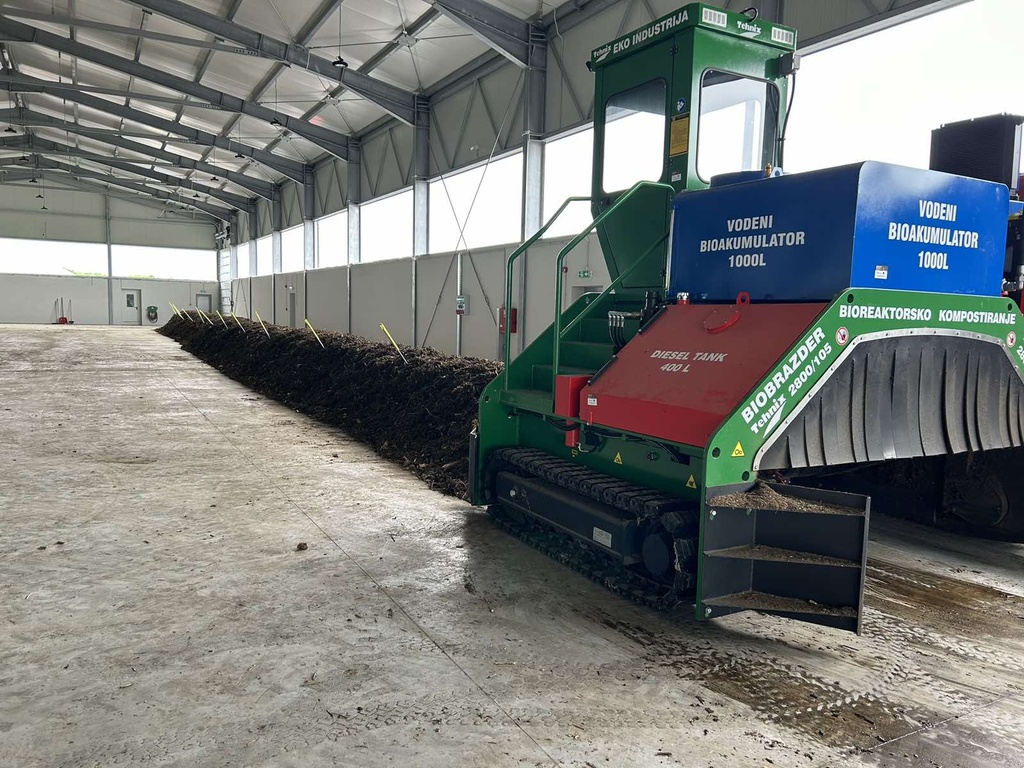

    Kompostder
    Kompostder
    Kompostder
    Kompostder
    1. Bio-furrow turner
    2. Kompostder
    3. Kompostder
    4. Kompostder
    5. Kompostder

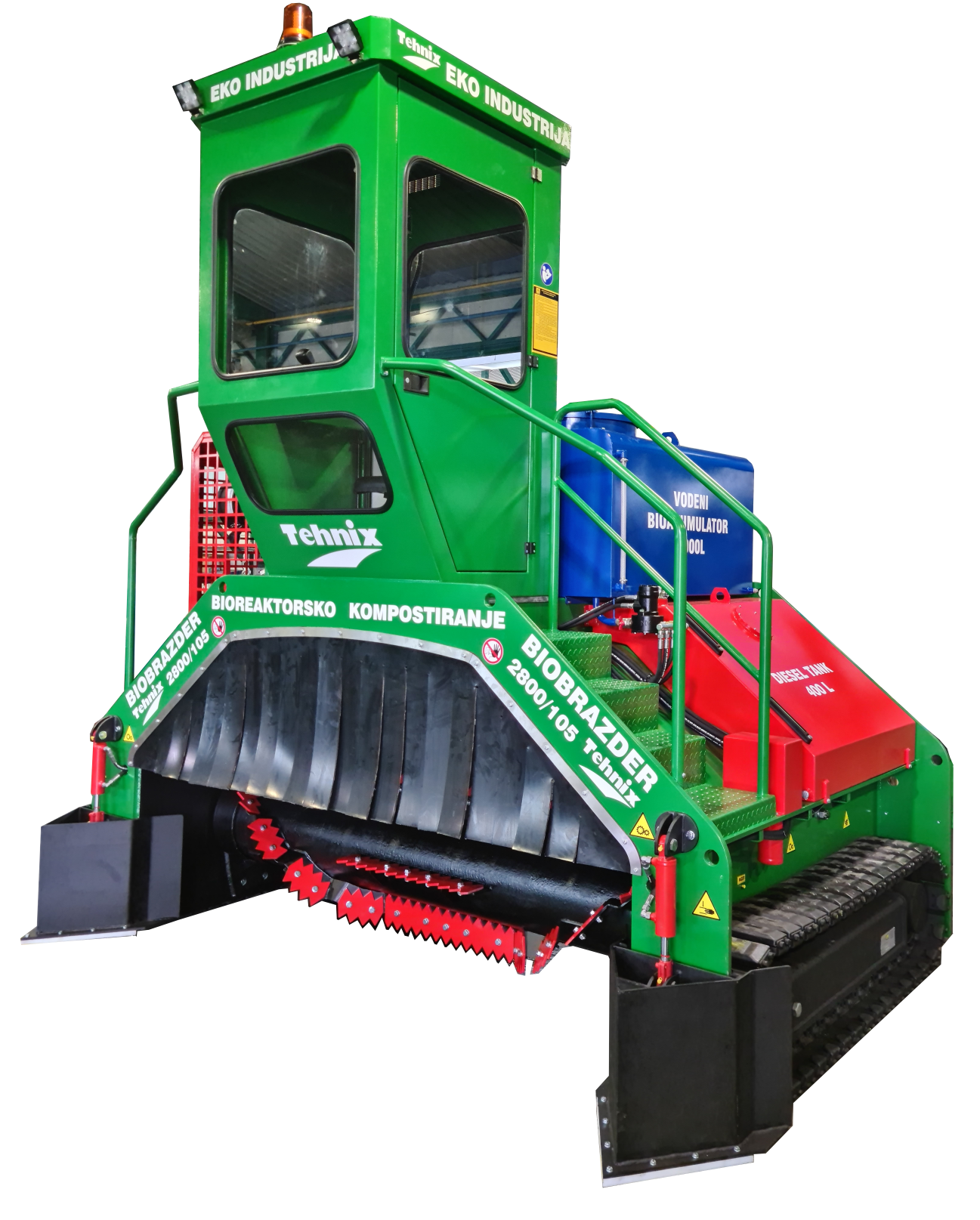

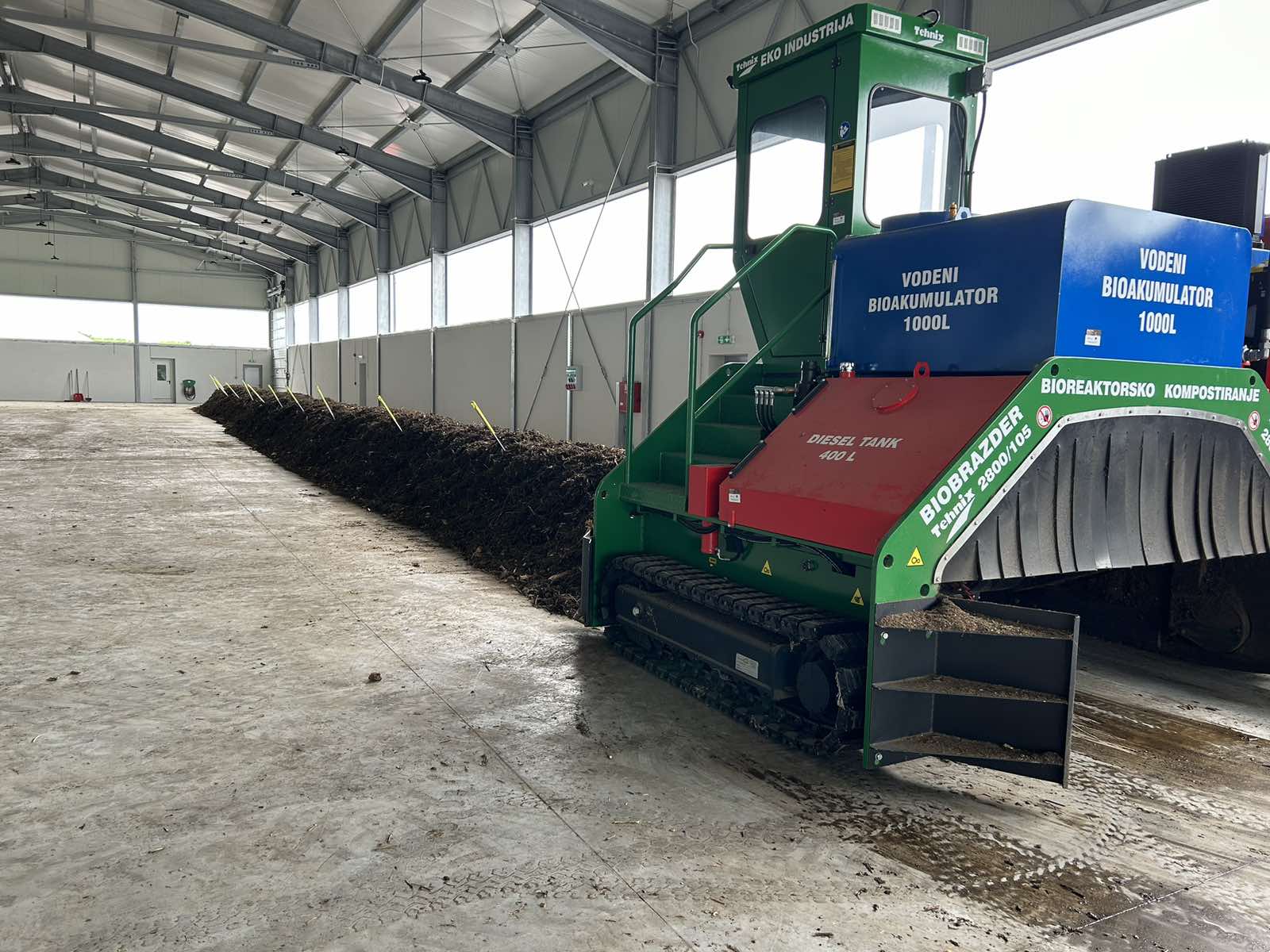

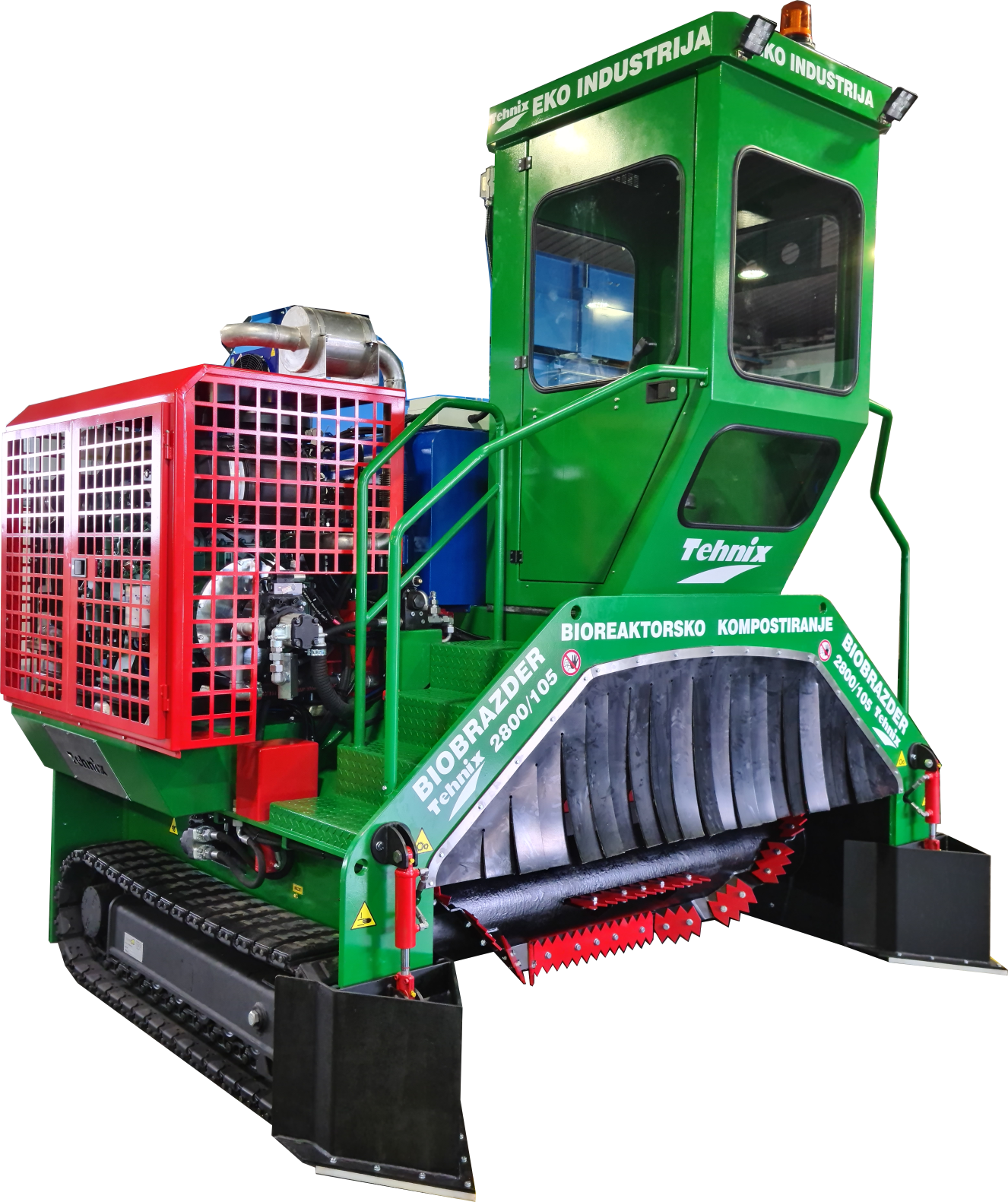

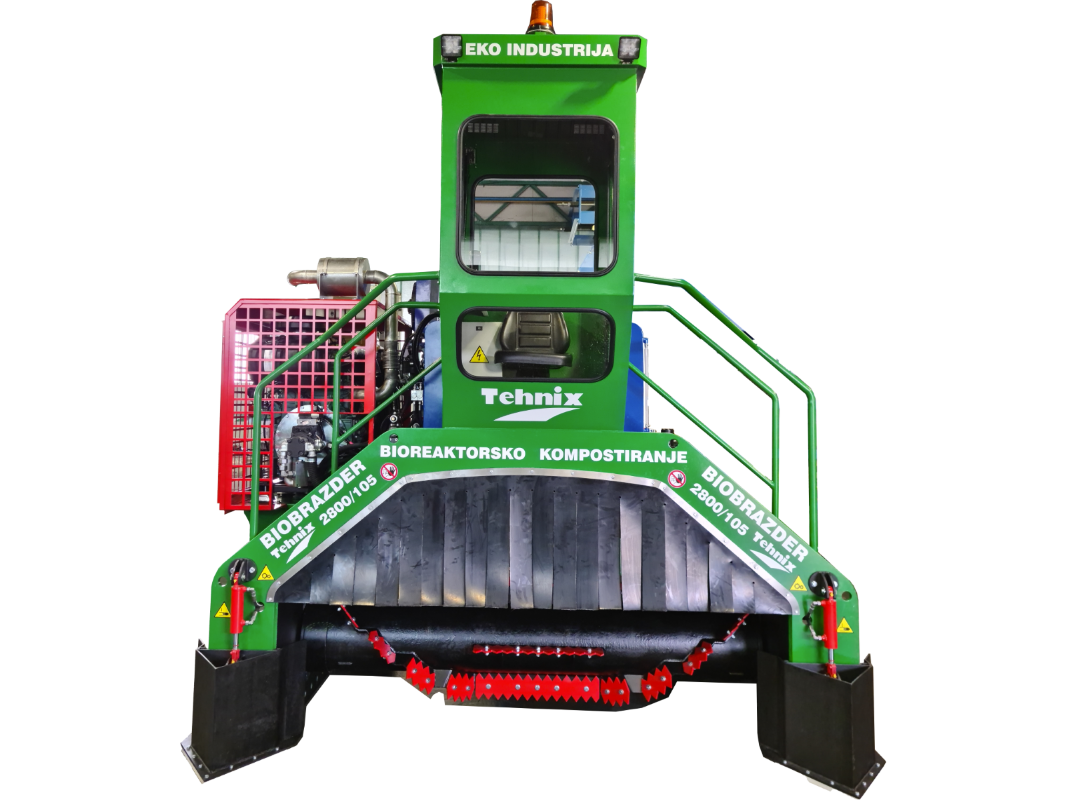

    Bio-furrow turner

    SKU:
    N/A

    To ensure regular and homogeneous conditions for the decomposition of the compost pile, it is necessary to regularly turn and moisten the biomass. That's what the machine for overturning compost piles is for - Biobrazder!

    Contact Us
    Description

    1.497 / 5.000 Rezultati prijevoda Rezultat prijevoda As a result of turning and wetting, the material is loosened and oxygen is allowed to penetrate. Microbial activity is stimulated once again, resulting in an increase in temperature. Due to the penetration of new oxygen into the pile, anaerobic zones, anaerobic processes and stench are prevented. During turning, the dry and wet zones of the piles are mixed, and the moisture level is equalized. Turning also ensures a higher degree of homogeneity and quality of the compost.

    The turning is done with a special machine for overturning piles. The machine is of portal construction with a rotating drum in the middle. The drum contains knives arranged in a spiral shape. These knives are used to turn over and loosen the pile, and the spiral shape ensures that a trapezoidal furrow is formed as the most suitable shape for processing biodegradable mass. The drum has the ability to adjust the height so that the machine can be adapted to the terrain where the compost piles are turned.

    The machine is self-contained, powered by a diesel generator and has a built-in system for additional moistening of the compost pile. The system consists of a water reservoir located on the upper side of the machine, from which the water is transported through hoses to the nozzles that spray water into the working area of ​​the machine.

    The person operating the machine is placed in a closed, glazed cabin positioned on the upper part of the machine with side access. This position of the cabin ensures high-quality visibility of the working environment. The machine moves using tracks, each of which is driven separately, which allows it to turn around its own axis.

    Advantages and benefits
    • Regular and efficient turning of the pile: Biobrazderr ensures regular turning of compost piles, which achieves homogeneous conditions for the decomposition of biomass. Continuous turning promotes the penetration of oxygen, stimulates microbial activity and increases the temperature, contributing to an efficient composting process
    • Reduction of anaerobic zones and odors: Turning the pile prevents the formation of anaerobic zones and anaerobic processes, which reduces unpleasant odors. Ubiquitous oxygen promotes aerobic conditions, improves the decomposition process and results in better quality compost.
    • Homogeneity and equalization of moisture level: The turning process mixes the dry and wet zones of the pile, achieving a balance in the moisture level. This ensures the homogeneity of the material, prevents local variations and contributes to the quality of the compost
    • Innovative gantry construction: The machine is equipped with a gantry construction with a rotating drum, which enables efficient and precise turning of compost piles. Spiral knives on the drum ensure an optimal furrow shape for biomass processing
    • Independence and adaptability to the terrain: Biobrazder is independent, powered by a diesel engine, which enables independent movement. The height of the rotating drum can be adjusted to the terrain, ensuring efficient turning even in inaccessible terrain.
    • Humidification for additional efficiency: The built-in system for additional humidification enables precise control of the moisture level in compost piles. The nozzles spray water into the working space of the machine, contributing to optimal conditions for composting
    • Safety and visibility: The control cabin located on the upper part of the machine provides a safe and visible working area. High-quality visibility of the environment allows the operator to effectively control the machine
    • Track drive for maneuverability: Track drive with independent drive of each track allows the machine flexibility of movement, including the ability to turn on its own axis. This is especially useful on terrains where precise maneuvering is required




    Technical specifications
    M O D E L   2300/73K 2800/105V 3500/160V
    DULJINA mm 2490,0 2490 / 3430 2490 / 3430
    ŠIRINA mm 2950,0 3500 / 3895 4200 / 4895
    SNAGA MOTORA kW 73 105 160
    VOLUMEN SPREMNIKA GORIVA l 120,0 400,0 550,0
    VOLUMEN SPREMNIKA HIDRAULIČKOG ULJA l 200,0 200,0 280,0
    VOLUMEN BIOAKUMULATORA m3 0,7 1,5 1,7
    BRZINA m/min 4 - 60 4 - 60 4 - 60
    PROMJER ROTORA mm 400,0 400,0 400,0
    VISINA LOPATICA mm 100,0 120,0 120,0
    TIP I MATERIJAL LOPATICA DVOSTRANE / IZMJENJIVE / HARDOX 650 DVOSTRANE / IZMJENJIVE / HARDOX 650 DVOSTRANE / IZMJENJIVE / HARDOX 650
    ŠIRINA BRAZDE mm 2300,0 2800,0 3500,0
    VISINA BRAZDE mm 1000,0 1250,0 1600,0
    SPECIFIČNI VOLUMEN BRAZDE m3/m1 1,20 2,00 3,00
    KAPACITET OBRADE m3/h 300,0 450,0 700,0


    1.497 / 5.000 Rezultati prijevoda Rezultat prijevoda As a result of turning and wetting, the material is loosened and oxygen is allowed to penetrate. Microbial activity is stimulated once again, resulting in an increase in temperature. Due to the penetration of new oxygen into the pile, anaerobic zones, anaerobic processes and stench are prevented. During turning, the dry and wet zones of the piles are mixed, and the moisture level is equalized. Turning also ensures a higher degree of homogeneity and quality of the compost.

    The turning is done with a special machine for overturning piles. The machine is of portal construction with a rotating drum in the middle. The drum contains knives arranged in a spiral shape. These knives are used to turn over and loosen the pile, and the spiral shape ensures that a trapezoidal furrow is formed as the most suitable shape for processing biodegradable mass. The drum has the ability to adjust the height so that the machine can be adapted to the terrain where the compost piles are turned.

    The machine is self-contained, powered by a diesel generator and has a built-in system for additional moistening of the compost pile. The system consists of a water reservoir located on the upper side of the machine, from which the water is transported through hoses to the nozzles that spray water into the working area of ​​the machine.

    The person operating the machine is placed in a closed, glazed cabin positioned on the upper part of the machine with side access. This position of the cabin ensures high-quality visibility of the working environment. The machine moves using tracks, each of which is driven separately, which allows it to turn around its own axis.
