    Automatic baler press
    Automatska preša balirka
    Automatska preša balirka
    Automatska preša balirka
    Automatska preša balirka
    Automatska preša balirka
    1. Automatic baler press
    2. Automatska preša balirka
    3. Automatska preša balirka
    4. Automatska preša balirka
    5. Automatska preša balirka
    6. Automatska preša balirka

    Automatic baler press

    SKU:
    N/A

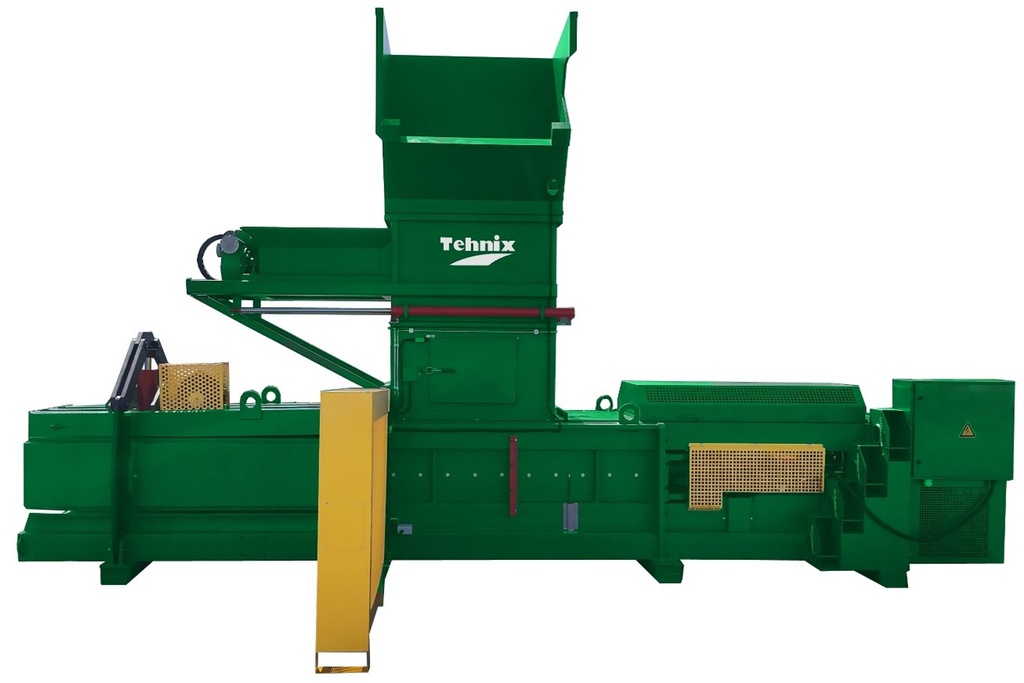

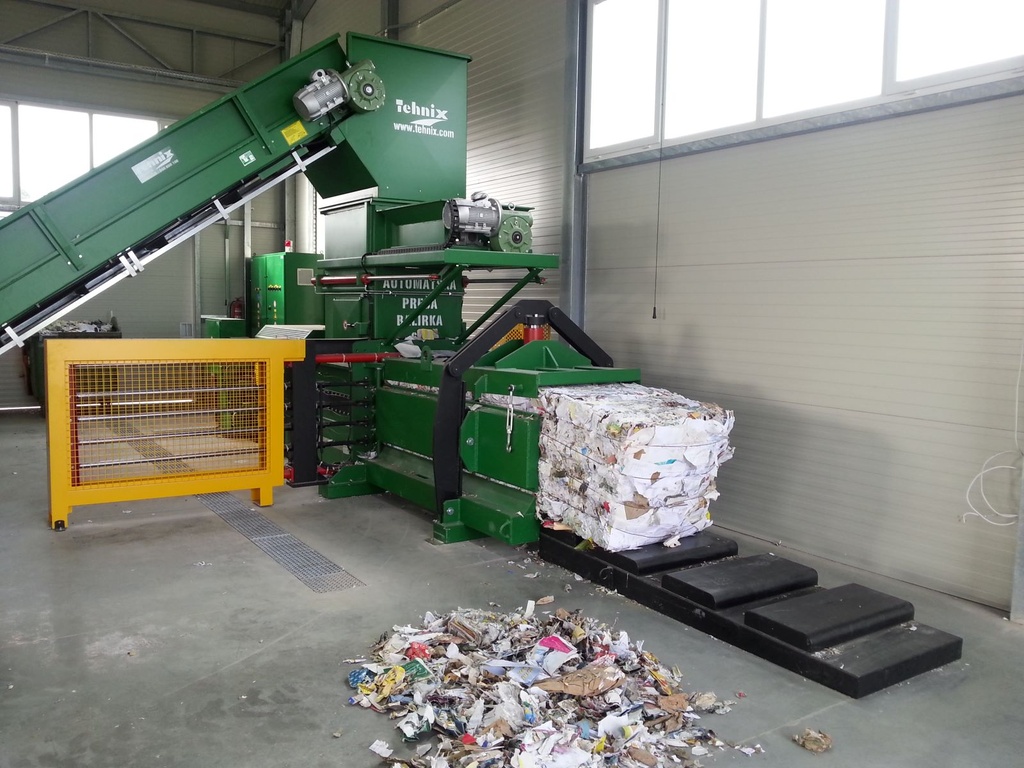

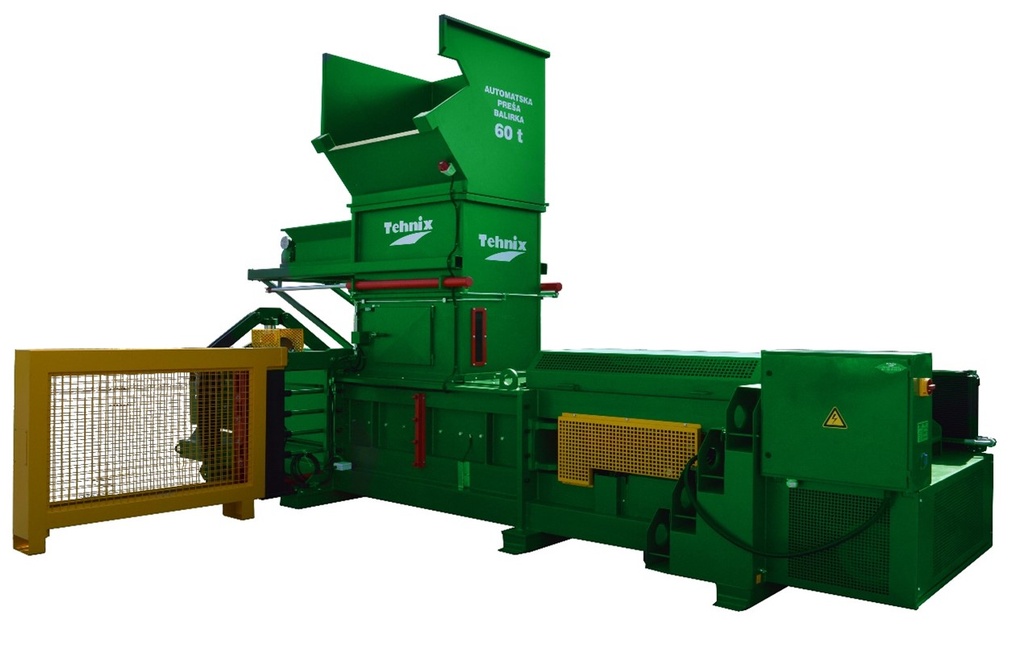

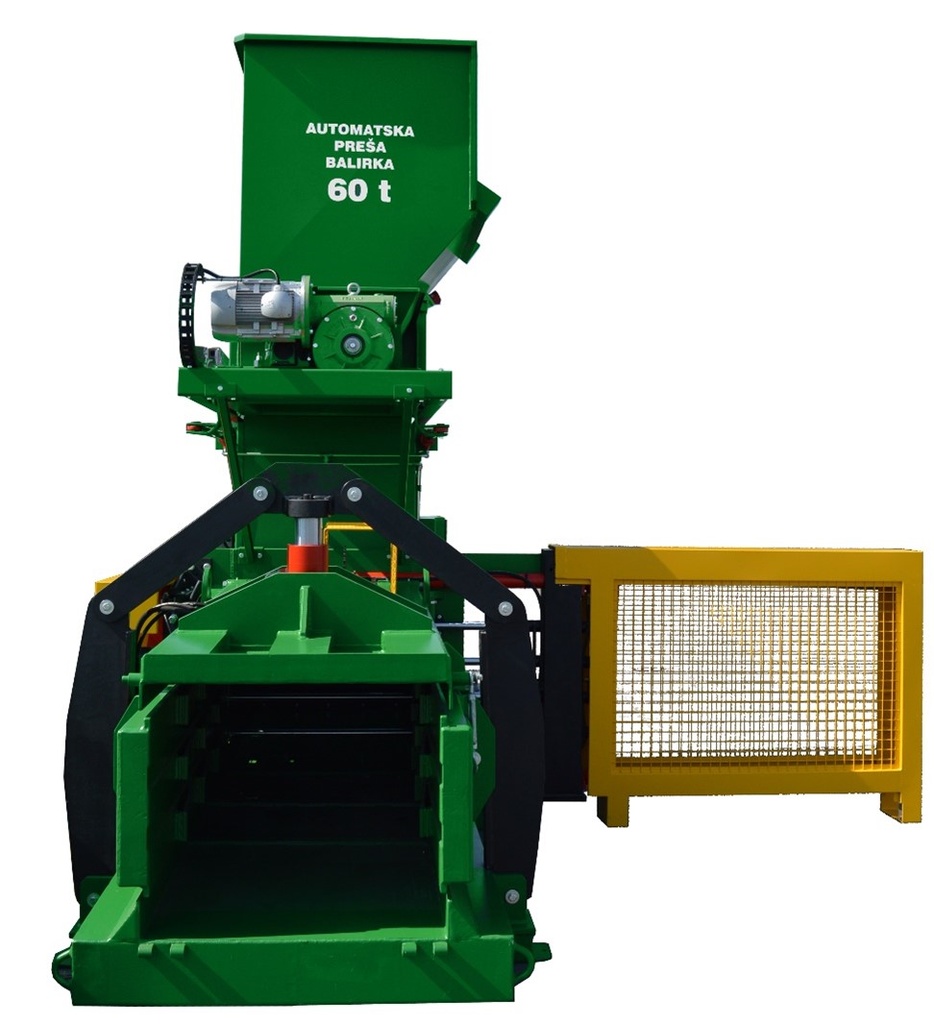

    The automatic baler press is a modern device for reducing municipal waste. The special construction enables sorting of municipal waste to be pressed into bales. Pressed waste is tied into bales using wire, forming a compact unit.

    The length of the bales can be adjusted from 1200 mm to 2400 mm, so that the space of the transport vehicle is optimally filled. Management can be automatic or manual.

    Category: Waste management technology
    Contact Us
    Description

    The drive of the whole system is done over a special two-stage hydraulic pump with high-speed pressing. Cylinder walking speed and pressure can be electronically regulated

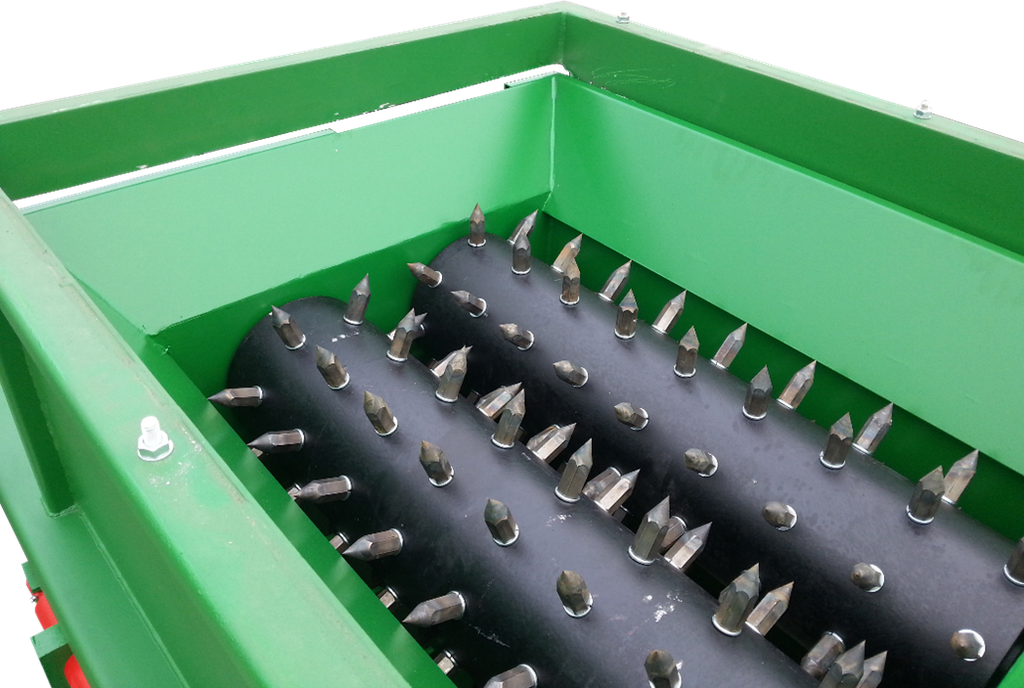

    When baling sorted plastic, a perforator for PET is installed with the suction hatch of the press. A perforator is used for drilling PET packaging to release air from it, thus increasing the efficiency of pressing. Drilling is done by means of two rotating drums on which it is performed to find sharpened spikes. The spikes are prefabricated for easy sharpening and replacement. It's a perforator located on guides and can be pulled out of the suction system by means of a hydraulic system hatch press when it is not needed, i.e. when PET is not pressed.

    On a press intended for baling RDF, a shredder is installed to shred the material on fraction size approx. 30 mm. Shredder is located on guides is used in the hydraulic system and can be pulled out of the suction hatch when it is not needed.

    At the exit of the press, there is the possibility of installing a low-profile platform scale with a load capacity of up to 1500 kilograms for weighing produced bales.


    Adventages and benefit
    • Effective pressing and reduction of waste: The modern hydraulic pump allows a high pressing speed, resulting in the efficient reduction of municipal waste into compact bales. It reduces the volume of waste and facilitates its disposal.​
    • Adjustable ball length: The possibility of adjusting the length of the bale from 1200 mm to 2400 mm allows optimal filling of the vehicle space for transport. This adaptability helps in effectively organizing the shipment and transport of bales..
    • Automatic or manual control: Flexibility in control mode allows automatic or manual leading of the pressing process, which facilitates the adjustment of the working framework according to the specific requirements and preferences of the operator
    • Perforator for PET packaging: Installing perforators for PET packaging increases pressing efficiency, releasing air from the packaging. This results in firmer and more compact bales of plastic.
    • Shredder for RDF: U a press intended for baling RDF is an integrated shredder that the material is shredded on a fraction the size of approx. 30 mm. This feature helps in the treatment of specific types of waste
    • Installation capability platform scales: There is a low profile installation option at the outlet of the press platform scales carrying up to 1500 kilograms, which allows precise weighing of produced bales..
    ​Application




    Technical specifications

    TYPE


    APB-40

    APB-60

    APB-100

    Pressing force

    kN

    300

    600

    900

    Baling material


    PET, MET, foil, paper, cardboard, aluminum, RDF

    PET, MET, foil, paper, cardboard, aluminum, RDF

    PET, MET, foil, paper, cardboard, aluminum, RDF

    The drive power of the pressing system

    kW

    11

    22

    37+4


    Drive power of PET perforator (option)

    kW

    5,5

    5,5

    5,5

    Shredder drive power (option)

    kW

    15

    15

    15

    Pressing capacity

    t/h

    3

    6

    10

    Bale weight (depending on the material)

    kg

    300

    650

    1000

    Number of binding wires


    2

    4

    6

    Tie wire diameter

    mm

    ∅3,2

    ∅3,2

    ∅3,2

    Bale dimensions (L x W x H)

    mm

    1200-2400 x 800 x 600

    1200-2400x900x600

    1200-2400x1000x1200

    Device dimensions (L x W x H)

    mm

    7200 x 1900 x 2850

    7200 x 2000 x 3900

    7950 x 2100 x 4350


    The drive of the whole system is done over a special two-stage hydraulic pump with high-speed pressing. Cylinder walking speed and pressure can be electronically regulated

    When baling sorted plastic, a perforator for PET is installed with the suction hatch of the press. A perforator is used for drilling PET packaging to release air from it, thus increasing the efficiency of pressing. Drilling is done by means of two rotating drums on which it is performed to find sharpened spikes. The spikes are prefabricated for easy sharpening and replacement. It's a perforator located on guides and can be pulled out of the suction system by means of a hydraulic system hatch press when it is not needed, i.e. when PET is not pressed.

    On a press intended for baling RDF, a shredder is installed to shred the material on fraction size approx. 30 mm. Shredder is located on guides is used in the hydraulic system and can be pulled out of the suction hatch when it is not needed.

    At the exit of the press, there is the possibility of installing a low-profile platform scale with a load capacity of up to 1500 kilograms for weighing produced bales.
