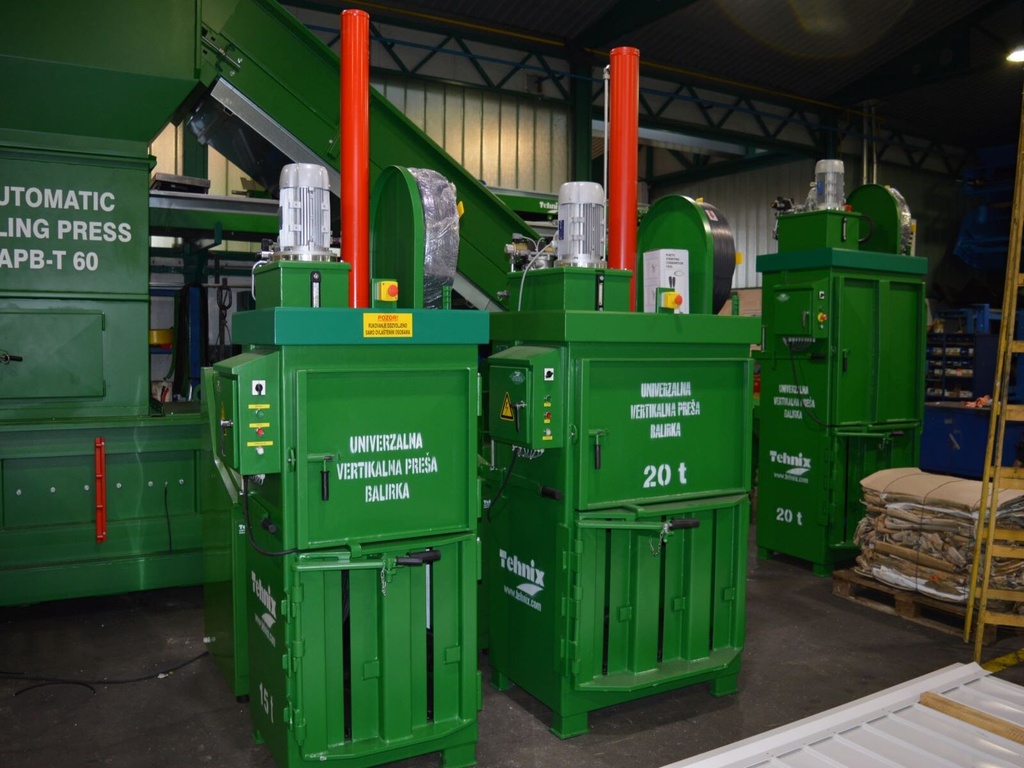

Vertical press baler

SKU:

N/A

The vertical press baler is a modern device for reducing municipal waste. The special construction enables the pressing of sorted municipal waste into bales.

Category: Waste management technology

Description

Primjene

Technical specifications

Type		VPB-10	VPB-15	VPB-20
Pressing force	kN	100	150	200
Baling material		PET, MET, foil, paper, cardboard, aluminum, RDF	PET, MET, foil, paper, cardboard, aluminum, RDF	PET, MET, foil, paper, cardboard, aluminum, RDF
The drive power of the pressing system	kW	2,2	3	4
Bale weight (depending on the material)	kg	100	200	250
Bale dimensions (L x W x H)	mm	600 x 510 x 550	700 x 710 x 650	1000 x 710 x 650
Device dimensions (L x W x H)	mm	950 x 900 x 2800	1040 x 1120 x 3240	1465 x 2440 x 3860

Advantages and benefits

Adjustable bale height: The ability to adjust the bale height enables optimal filling of the transport vehicle space. This adaptability improves shipping and transportation logistics.
Manual tying with wire: The process of tying bales is done manually using a wire tying mechanism. This approach allows for precise and reliable bonding, preventing waste from being wasted after the pressing process.
Easy operation: The control unit located on the control cabinet makes it easy to operate the press. A simple interface makes it easier for the operator, thus increasing the efficiency of the process.
Protective sensors on the door: Sensors placed on the door act as an additional protective element. They prevent the press from turning on if all the doors are not properly closed, thus increasing work safety and preventing potential accidents.
Special pump for fast pressing: The system is driven by a special pump that enables high pressing speed. Pressing speed increases the overall efficiency and productivity of the device.
Easy operation of the press housing: The upper and lower doors of the press housing allow for easy loading of waste and removal of compressed waste. This practical feature facilitates maintenance and cleaning operations.
