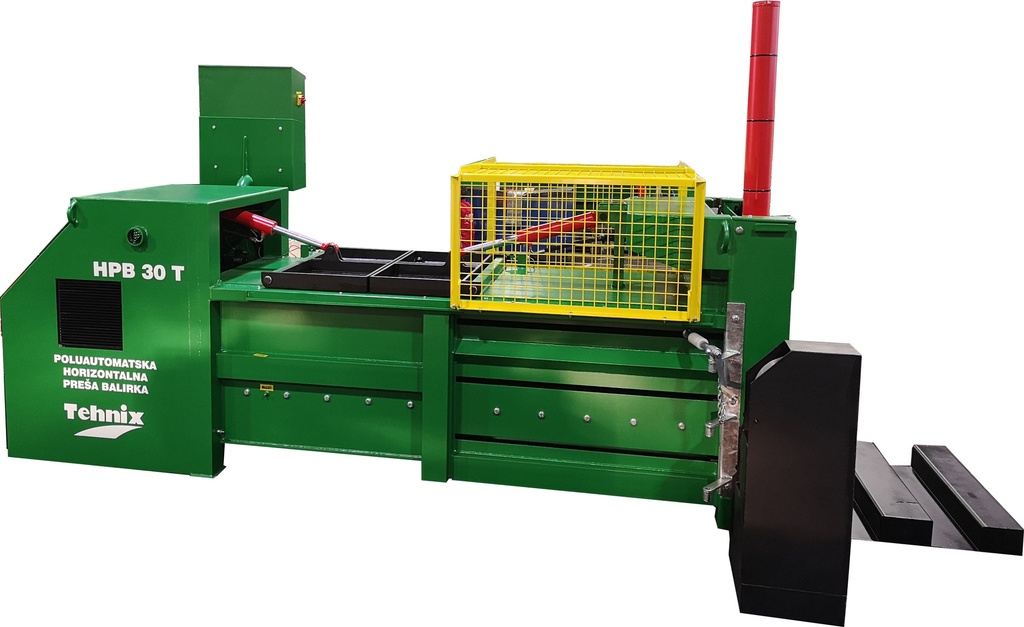

    Horizontal baler press
    1. Horizontal baler press
    2. HPB-30.jpg

    Horizontal baler press

    SKU:
    N/A

    The horizontal press baler is a modern device for reducing municipal waste. The special construction enables the sorting of municipal waste to be pressed into bales.

    Category: Waste management technology
    Contact Us
    Description

    The length of the bales can be adjusted according to the needs for optimal filling of the space of the transport vehicle. Tying is a manual process using a wire-tying mechanism that prevents waste from being scattered after the pressing process.

    The control unit is located on the control cabinet and is used to control the press.

    The rear cylinder serves to lower and raise the door, which serves as a dam during the pressing process. The remaining two cylinders open the lids of the filling chamber and have the task of closing the lids before pressing, and in this case, waste is prevented from falling out during the pressing process itself.

    As an additional protective element, a cage is installed with the purpose of protecting the machine operator from injury. It is necessary that the protective net is in a horizontal position to enable the ignition of the hydraulic unit of the press and the start of the pressing process itself.



    Advantages and benefits
    • Efficient baling of materials: The horizontal press enables efficient baling of sorted municipal waste, reducing the volume of waste and facilitating its further disposal.
    • Adaptability of bale length: The ability to adjust the length of the bales provides flexibility in adapting the press to different requirements and specifics of the material.
    • Safe operation with protective cage: The built-in cage provides protection to the operator, reducing the risk of injury and increasing overall safety.
    • Automatic closing of the lids: Automatic opening and closing of the lids contribute to the efficiency of the pressing process, preventing uncontrolled loss of material.
    • Simple management: Controlling the press through the control cabinet makes the pressing process simple and accessible to the operator.
    Technical specifications

    TYPE


    HPB-25

    HPB-35

    Pressing force

    kN

    250

    350

    Baling material


    PET, MET, foil, paper, cardboard, aluminum, RDF

    PET, MET, foil, paper, cardboard, aluminum, RDF

    The drive power of the pressing system

    kW

    5,5

    11

    Bale weight (depending on the material)

    kg

    250

    400

    ​Bale dimensions (L x W x H)

    mm

    1000 x 720 x 720

    1000 x 820 x 820

    Device dimension (L x W x H)​

    mm

    5245 x 1370 x 2700

    5245 x 1370 x 2700


    The length of the bales can be adjusted according to the needs for optimal filling of the space of the transport vehicle. Tying is a manual process using a wire-tying mechanism that prevents waste from being scattered after the pressing process.

    The control unit is located on the control cabinet and is used to control the press.

    The rear cylinder serves to lower and raise the door, which serves as a dam during the pressing process. The remaining two cylinders open the lids of the filling chamber and have the task of closing the lids before pressing, and in this case, waste is prevented from falling out during the pressing process itself.

    As an additional protective element, a cage is installed with the purpose of protecting the machine operator from injury. It is necessary that the protective net is in a horizontal position to enable the ignition of the hydraulic unit of the press and the start of the pressing process itself.
