Filter station

SKU:

N/A

During the operation of bag openers and separate rotors, dust is ejected in their working space, which pollutes the surrounding air and atmosphere. For this reason, the bag opener and roto sieve contain ventilation connections with a diameter of 500 millimeters, which suck air into the filter station.

Description

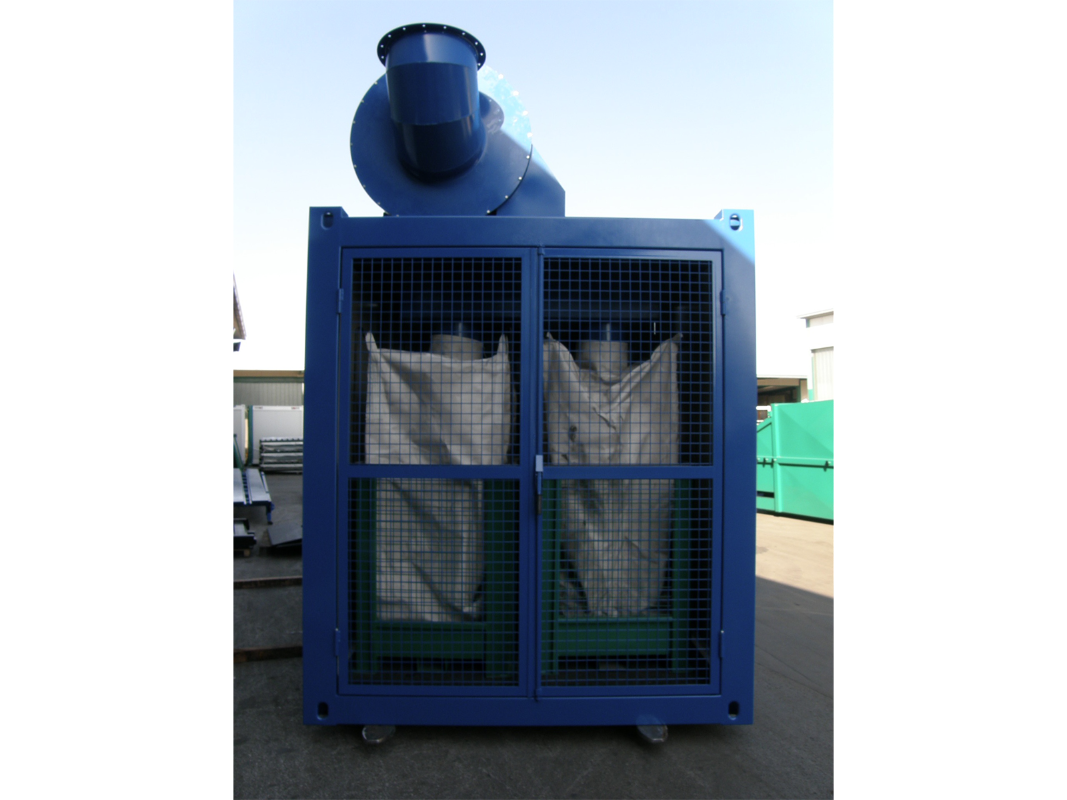

The filter station is located inside the waste sorting plant. Air is sucked from the bag opener and the communal separate rotor by a powerful fan / turbine. Polluted air is blown into filter bags where dust particles are filtered. The bags are located inside the housing of the filter station and are suspended on a metal supporting structure.

Advantages and benefits

Preservation of air quality in the working environment: The ventilation ports on the bag opener and the separator rotor, connected to the filter station, enable the effective removal of dust and pollutants from the work area. This contributes to the preservation of air quality inside the waste sorting facility and creates safer working conditions for employees.
Prevention of dust emissions into the atmosphere: Filtration of polluted air through filter bags prevents the emission of dust and particles into the environment. This approach reduces the negative impact on the outside air and contributes to preserving the purity of the atmosphere in the wider area.
Reducing the risk of respiratory problems: Air filtration through filter bags reduces the concentration of dust particles that could otherwise cause respiratory problems among workers. This system helps to protect the health of employees exposed to work with the bag opener and the separator rotor.
Extending equipment life: Regularly filtering polluted air before it leaves the work area helps reduce dust build-up on internal equipment parts, including the bag opener and separate rotor. This can extend the life of the equipment and reduce the need for frequent maintenance and replacement of parts.
Reduction of environmental impact: Using the filter station reduces the emission of dust particles into the environment, which has a positive environmental impact. Keeping the air clean contributes to reducing the negative effects on the local ecosystem and community.

Technical specifications

	FS-2	FS-4
Air treatment capacity (m3/min)	500	500
Number of bag filter cartridges	2	4
Dimensions of the filter station (L x W x H mm)	2250 x 1650 x 2500	4500 x 1650 x 2500
Suction fan power (kW)	5,5	5,5
Particle permeability (µm)	0,3	0,3
