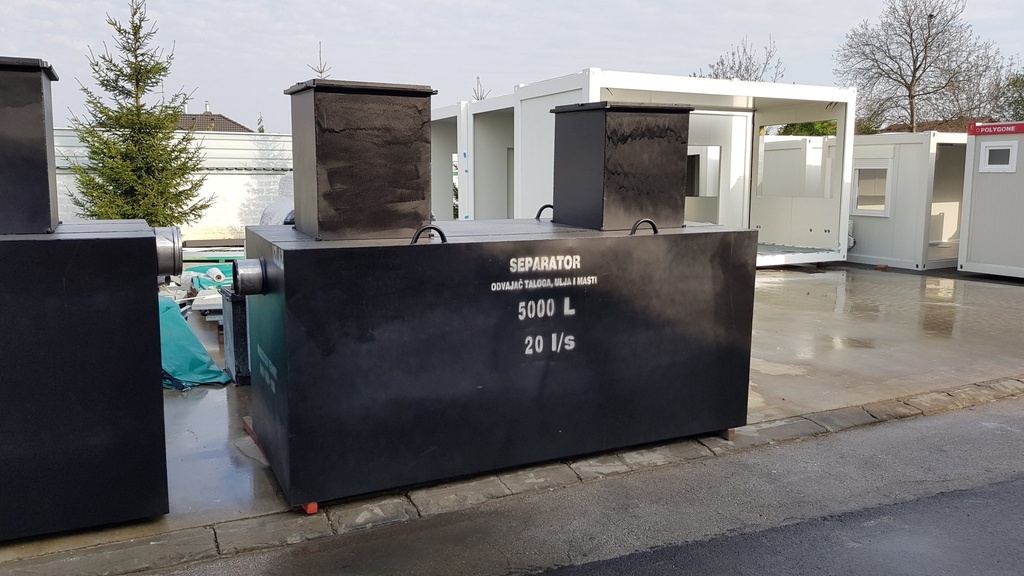

Light liquids separator

SKU:

N/A

The Tehnix separator is completely manufactured according to the HRN EN 858 standard with an integrated precipitator and coalescing cartridge. It is fully in the function of environmental protection and underground water conservation.

Category: Separator of light liquids

Description

It is intended for installation in the ground by dripping (only the covers of the service ports remain at ground level), but there is also the possibility of above-ground installation. The sliding necks adjust to the height of the terrain. According to its design, the separator belongs to the 1st class (EN 858). The concentration of residual oil in the outlet water is less than 5 mg/liter of water.

It is protected against corrosion by special tar epoxy resins.

Maintenance is minimal and is limited to controlling the amount of oil in the separator and disposing of the contents of the separator.

Advantages and benefit

Environmental and groundwater protection function: Separator Tehnix has a key role in environmental protection and groundwater conservation. The release of water with a low concentration of residual oil contributes to the preservation of the purity of underground water, thereby reducing the negative impact on the environment.
Adaptability of installation: The device is intended for installation in the ground by dripping, whereby only the covers of the service outlets remain at ground level. However, there is also the option of above-ground installation, and the sliding necks can be adjusted to the height of the terrain. This flexibility facilitates adaptation to specific environmental conditions.
Anti-corrosion protection: The device is anti-corrosion protected with special tar epoxy resins, which prolongs its durability and ensures resistance to external conditions and aggressive substances that can be found in the waste water.
Minimal maintenance: Device maintenance is minimal and is limited to controlling the amount of oil in the separator and disposing of the contents. This contributes to practicality and lower operating costs.

Technical specifications

Separator type	Length	Width	Height	Total height	Entrance	Exit	Entrance height	Pipes	Flow
Volumen (l)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(l/s)
800	1.500	750	800	1.300	620	675	680	Ø 110	1,6
1.200	1.500	850	1.000	1.500	620	675	880	Ø 110	2,2
2.000	2.000	1.000	1.100	1.600	620	675	980	Ø 110	3
2.500	2.500	1.000	1.200	1.700	635	700	1.065	Ø 125	6
3.500	2.750	1.100	1.200	1.950	920	1.000	1.030	Ø 160	10
5.000	3.000	1.250	1.300	2.050	950	1.050	1.100	Ø 200	20
6.000	3.500	1.300	1.350	2.100	1.000	1.125	1.100	Ø 250	30
10.000	4.500	1.500	1.500	2.250	1.000	1.125	1.250	Ø 250	40
15.000	6.000	1.500	1.500	2.500	1.325	1.485	1.175	Ø 315	60
20.000	6.000	2.000	2.000	3.000	1.325	1.485	1.675	Ø 315	80
25.000	6.000	2.250	2.000	3.000	1.410	1.610	1.590	Ø 400	100
30.000	7.000	2.250	2.000	3.000	1.510	1.760	1.490	Ø 500	125
35.000	8.000	2.250	2.250	3.250	1.250	1.500	2.000	Ø 500	150
40.000	9.000	2.500	2.500	3.500	1.300	1.600	2.200	Ø 600	200
50.000	10.000	2.500	3.000	4.000	1.300	1.600	2.700	Ø 600	250
