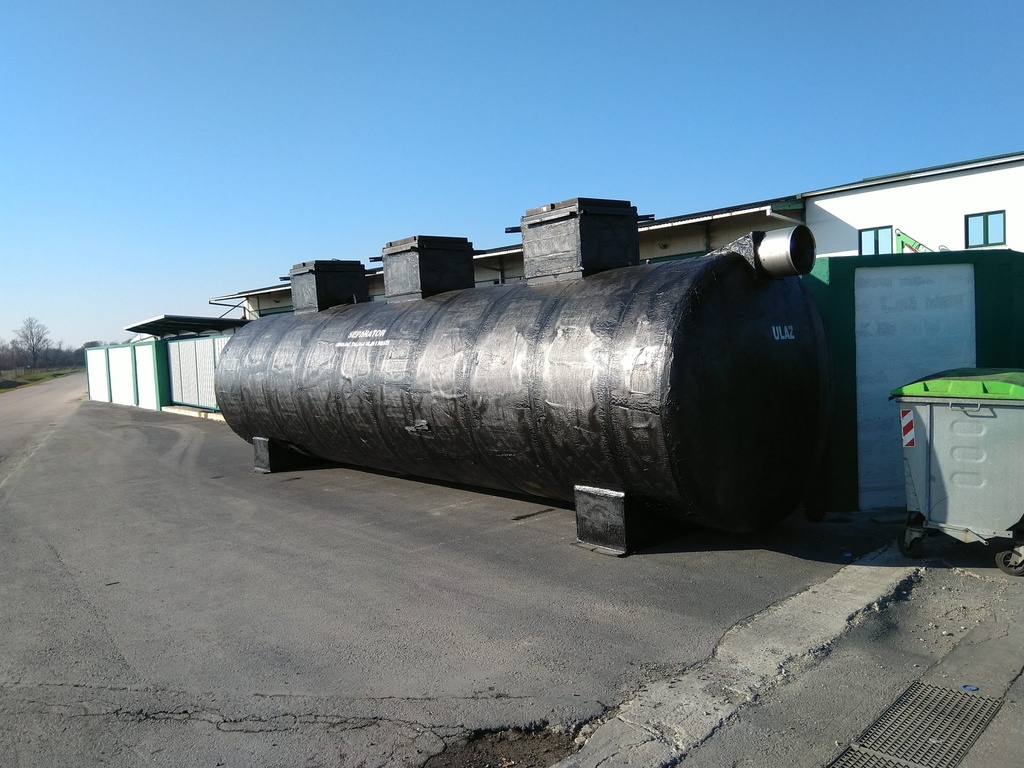

Special separator

SKU:

N/A

Special separators are intended for separating oil and fat, sediment, sand, gravel, and ash from precipitation or processed oily water.

Category: Oil and grease separators

Description

The Tehnix separator is completely manufactured according to the HRN EN 858 standard with an integrated precipitator and coalescing cartridge. It is fully in the function of environmental protection and underground water conservation.

It is intended for installation in the ground by dripping (only the covers of the service ports remain at ground level), but there is also the possibility of above-ground installation. The sliding necks adjust to the height of the terrain. According to its design, the separator belongs to the 1st class (EN 858). The concentration of residual oil in the outlet water is less than 5 mg/liter of water..

It is protected against corrosion by special tar epoxy resins..

Maintenance is minimal and is limited to controlling the amount of oil in the separator and disposing of the contents of the separator.

Advantages and benefits

Versatility in the separation of different substances: Tehnix special separators are intended for the separation of oil and grease, sediment, sand, gravel, and ash from precipitation or processed oily water. This versatility enables efficient purification of water from various impurities, contributing to the preservation of the environment
• Compliance with the HRN EN 858 standard: The Tehnix special separator is completely manufactured according to the HRN EN 858 standard, which ensures that it meets the high quality and safety standards prescribed for this type of device. This conformity confirms the reliability and efficiency of the device.
Integrated precipitator and coalescing cartridge: The device is equipped with an integrated precipitator and coalescing cartridge, which increases the efficiency of the fat-water separation process. This integration ensures a high level of purification and prevents the release of unwanted substances into the environment.
Adaptability of installation: The special separator Tehnix is intended for installation in the ground by dripping, with the possibility of above-ground installation. Sliding necks can be adjusted to the height of the terrain, providing flexibility in placing the device according to the specifics of the environment or the needs of the installation.
Low concentration of residual oil in the output water: The separator belongs to the 1st class according to EN 858, and the concentration of residual oil in the output water is maintained below 5 mg/liter of water. This low level of pollution guarantees a high quality of purified water that is discharged into the environment.
Anti-corrosive protection: The special separator is anti-corrosively protected with special tar epoxy resins, which extends the durability of the device and ensures resistance to external conditions and aggressive substances that can be found in wastewater.

Technical specifications

Cylindrical type	Diameter DN (mm)	Lenght L (mm)	Total height	Inlet U	Outlet I	Pipes DN	Flow rate Q(l/s)
2 500	1 250	2 650	1 850	635	695	Ø 125	6
3 500	1 250	2 740	1 850	670	750	Ø 160	10
4 500	1 600	2 450	2 200	710	810	Ø 200	15
5 000	1 600	2 820	2 200	60	810	Ø 200	20
6 000	1 600	3 740	2 200	760	885	Ø 250	30
10 000	1 600	5 350	2 200	875	1 000	Ø 250	40
15 000	1 600	8 570	2 250	875	1 025	Ø 315	60
20 000	2 000	6 960	2 650	910	1 060	Ø 315	80
25 000	2 000	8 450	2 650	810	1 010	Ø 400	100
30 000	2 000	10 120	2 650	850	1 100	Ø 500	125
35 000	2 500	7 500	3 200	850	1 100	Ø 500	150
40 000	2 500	8 800	3 200	850	1 150	Ø 600	200
50 000	2 500	10 800	3 200	850	1 150	Ø 600	250
80 000	2 900	12 100	4 000	1 400	1 800	Ø 800	300
