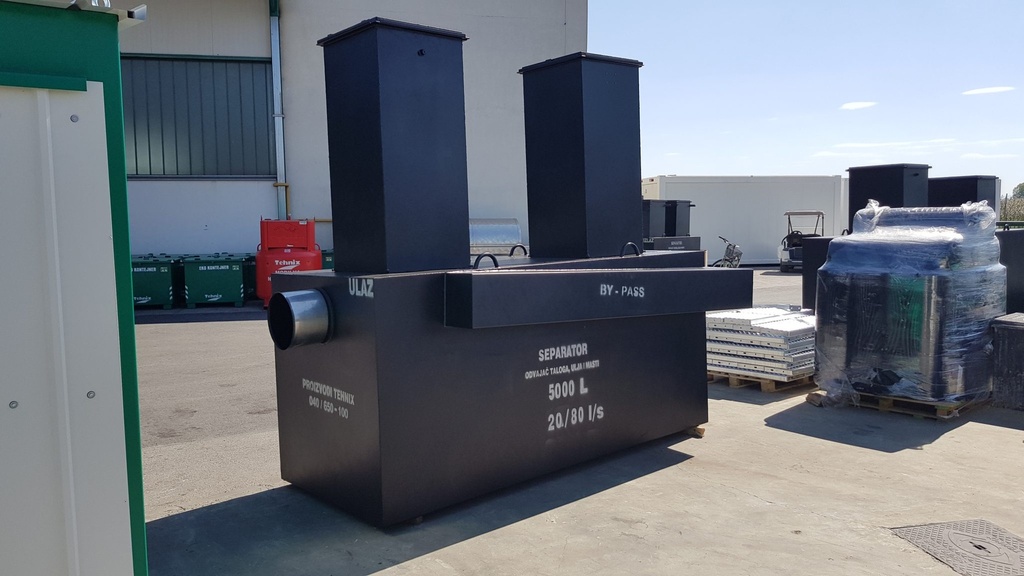

Sepatator with bypass

SKU:

N/A

The Tehnix separator is completely manufactured according to the HRN EN 858 standard with an integrated precipitator and coalescing cartridge. It is fully in the function of environmental protection and underground water conservation.

Category: Separator with bypass

Description

It is intended for installation in the ground by dripping (only the covers of the service ports remain at ground level), but there is also the possibility of above-ground installation. The sliding necks adjust to the height of the terrain. According to its design, the separator belongs to the 1st class (EN 858). The concentration of residual oil in the outlet water is less than 5 mg/liter of water.

It is protected against corrosion by special tar epoxy resins.

Maintenance is minimal and is limited to controlling the amount of oil in the separator and disposing of the contents of the separator.

Separators with bypasses are intended for installation in locations with minimal pollution of rainwater or oily water. The bypass is performed in a ratio of 1:5 or according to the project's requirements. The quality of water purification at the exit from the separator is less than 5 milligrams per liter.

Advantages and benefits

Adaptability of installation with a bypass: The key advantage of the separator with a bypass is the possibility of installation in locations with minimal pollution of stormwater oily water. The bypass system allows adaptability with a ratio of 1:5 or according to project requirements, which is especially useful in situations where water quality varies or where capacity adjustment is required..
Efficient separation of rainwater oily water: The bypass separator is designed for efficient separation of rainwater oily water. This system helps to prevent the release of impurities and oil into the environment, thereby contributing to the preservation of groundwater quality and environmental protection
Low concentration of residual oil in the outlet water: The bypass separator ensures that the concentration of residual oil in the outlet water is less than 5 milligrams per liter. This low level of pollution confirms the high efficiency of the system in purifying water before it is released into the environment.
Compliance with the HRN EN 858 standard: The Tehnix separator with a bypass line is completely manufactured according to the HRN EN 858 standard, which guarantees that it meets the high quality and safety standards prescribed for this type of device.
Minimal maintenance: Like the standard Tehnix separator, the one with a bypass requires minimal maintenance. Controlling the amount of oil in the separator and disposing of the contents are basic maintenance activities, thus reducing the need for frequent interventions and operating costs.

Technical specifications

Type	Lenght	Width	Height	Total height	Entrance	Exit	Entrance height	Pipes	Flow
Volumen (l)	L (mm)	B (mm)	H (mm)	h (mm)	U (mm)	I (mm)	VU (mm)	ØD (mm)	Q (l/s)
2000	2000	1000	1100	1600	610	710	890	200	3+12=15
2500	2500	1000	1200	1700	635	735	940	250	6+24=30
3500	2750	1100	1200	1950	885	985	940	250	10+40=50
5000	3000	1250	1300	2050	917,5	1017,5	975	315	20+80=100
6000	3500	1300	1350	2100	960	1120	940	400	30+120=150
10 000	4500	1500	1500	2250	985	1185	1040	450	40+160=200
15 000	6000	1500	1500	2500	1010	1260	1240	500	60+240=300
20 000	6000	2000	2000	3000	1010	1260	1740	500	80+320=400
25 000	6000	2250	2000	3000	1010	1310	1690	600	100+400=500
30 000	7000	2250	2000	3000	1010	1310	1690	600	125+500=625
35 000	8000	2250	2250	3250	1300	1600	1850	800	150+600=750
40 000	9000	2500	2500	3500	1400	1800	2100	800	200+800=1000
50 000	10 000	2500	3000	4000	1400	1800	2600	800	250+1000=1250
80 000	12 000	2500	3000	4000	1600	1800	2600	800	300+1200=1500
